HV Capacitor (2100V): Purpose on Microwaves and Price / Cost of Replacement in Nairobi – 0723763173

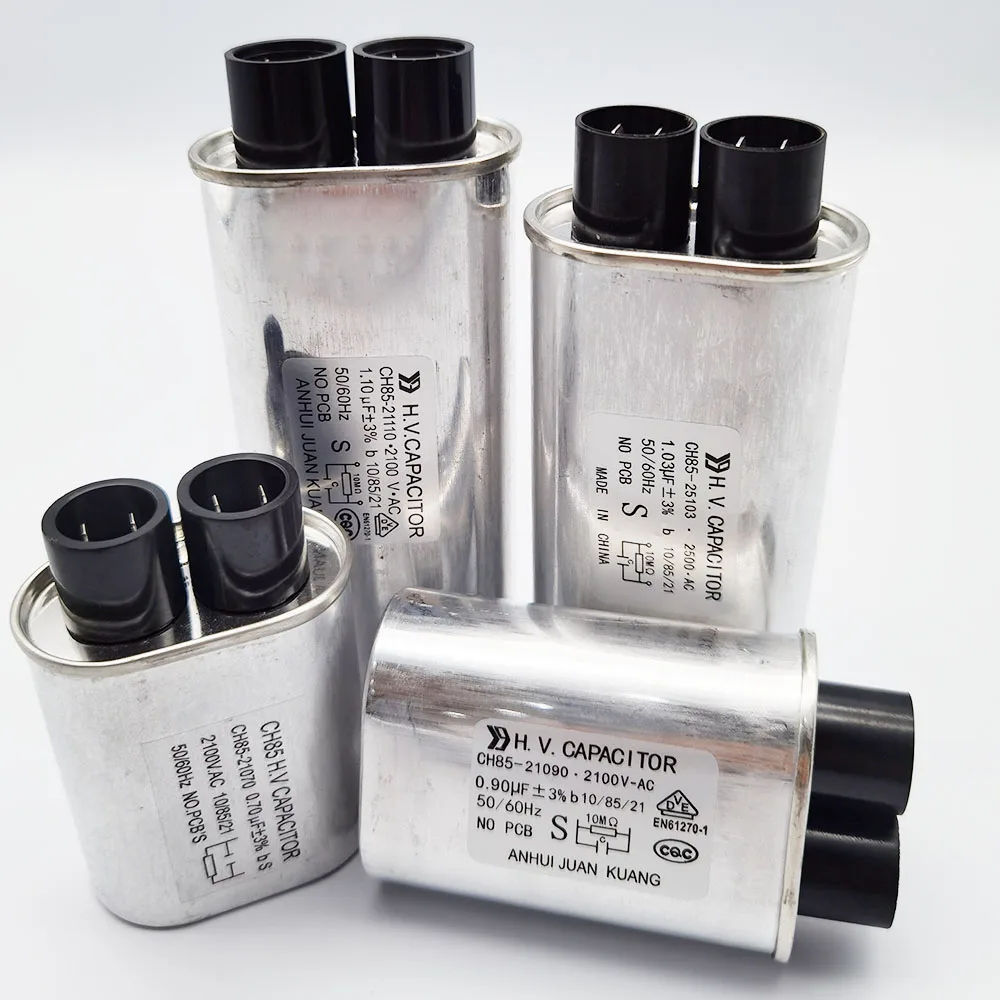

The high-voltage (HV) capacitor rated at 2100V AC in microwaves forms a voltage doubler circuit with the diode, converting the transformer’s 2100V AC output to approximately 4200V DC to power the magnetron for microwave generation. This oil-filled component stores and releases energy rapidly, enabling efficient heating while compensating for transformer leakage inductance to boost power factor above 95%. In Nairobi, where power fluctuations stress appliances, Cookerepair.com replaces these lethal parts safely via 0723763173, preventing no-heat failures common after 3-5 years.
Critical Role in Microwave Power Circuit
Positioned in the high-voltage section behind the unit’s casing, the HV capacitor (typically 0.68-1.1 µF, 2100V AC) pairs with the diode for half-wave rectification. It charges on AC peaks and discharges to supply steady DC to the magnetron’s anode, sustaining 2,450 MHz oscillations that agitate water molecules in food. Without it, the circuit collapses—no voltage reaches the magnetron, so the microwave powers on but fails to heat, often misdiagnosed as a transformer fault.
Its “magnetic leakage” design self-regulates filament and anode voltages, reducing transformer size by 30% and improving energy efficiency amid Kenya’s high electricity tariffs. Stored charge persists post-unplug (up to 5,000V), demanding professional discharge with insulated tools to avoid electrocution.
Failure Symptoms in Nairobi Homes
Arcing from oil leaks or bulging tops halts operation; humming without heat signals breakdown. Voltage surges from KPLC blackouts puncture dielectrics, while heat warps internals in dusty vents. Capacitance drops below 0.5 µF (testable via multimeter) confirms failure, risking magnetron burnout at KSh 5,000 extra.
Replacement Costs in Nairobi
Local prices cover OEM generics fitting LG, Samsung, Ramtons—cheaper than imports. Labor includes mandatory discharge and leak tests.
Cookerepair.com matches Bestcare rates with 6-month warranties, no call-out fees in CBD. Jumia adds KSh 500 delivery delays.
Step-by-Step Replacement Process
Technicians unplug, short capacitor terminals with a resistor-screwdriver (1-5kΩ, 10W) to bleed charge—voltmeter confirms zero. Remove cabinet (6-8 screws), access HV bay, desolder wires (photo polarity), extract old unit (weighs 300g), install new with fresh oil seal. Leak test at 2100V, reassemble, run empty for 1 minute. DIY voids safety—shocks kill instantly.
Why It Fails Faster in Kenya
Nairobi’s 220-240V spikes (up to 260V) overvolt capacitors beyond 2100V rating; humidity corrodes terminals. Run empty? Internal arcs explode oil. Annual pro checks spot 80% issues early.
Prevention Tips for Longevity
Install surge protectors (KSh 1,200), clean vents quarterly, avoid superheating liquids stressing the circuit. Match capacitance exactly (±10%) for timing stability—0.7µF swaps work if rated. Inverter microwaves halve HV stress.
Nairobi Service with Cookerepair.com
From Westlands to Eastlands, dial 0723763173 for same-day HV capacitor swaps across brands. Transparent quotes, stocked parts, and certified techs ensure compliance and safety. Revive your microwave’s heating power affordably—reliable meals start with a charged circuit.
